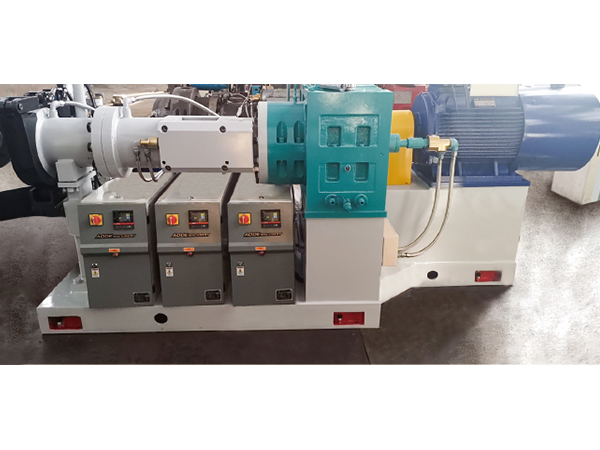

It is mainly used to extrude semi-finished rubber products such as tire tread, inner tube ,rim band and rubber tape，external encapsulating of wire & cable , etc.
|
型號 Model |
XJ-65 | XJ-90 | XJ-115 | XJ-150 | XJ-200 | XJ-250 |
|---|---|---|---|---|---|---|
|
螺桿直徑 (mm) Screw diameter |
65 | 90 | 115 | 150 | 200 | 250 |
|
螺桿長徑比L/D Screw L / D ratio |
4.5 | 4.8 | 4.8 | 6 | 6 | 6 |
|
螺桿轉速 (r/min) Max.screw speed |
47 | 65 | 60 | 55 | 45 | 45 |
|
電機功率 Motor power |
11 | 22 | 30 | 55 | 75 | 110 |
|
生產能力 (kg/h) Max.Production capacity |
60 | 250 | 420 | 900 | 1900 | 3500 |
