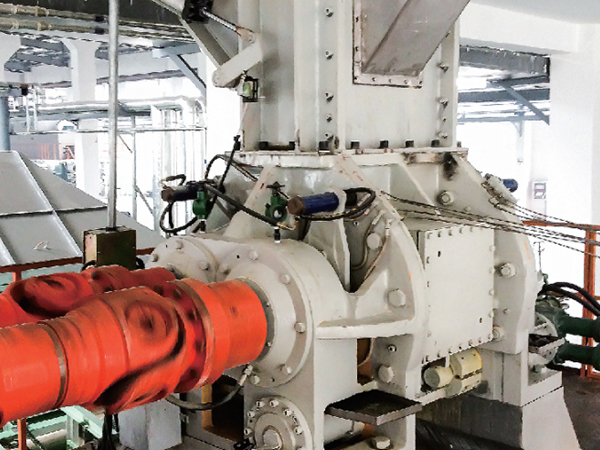

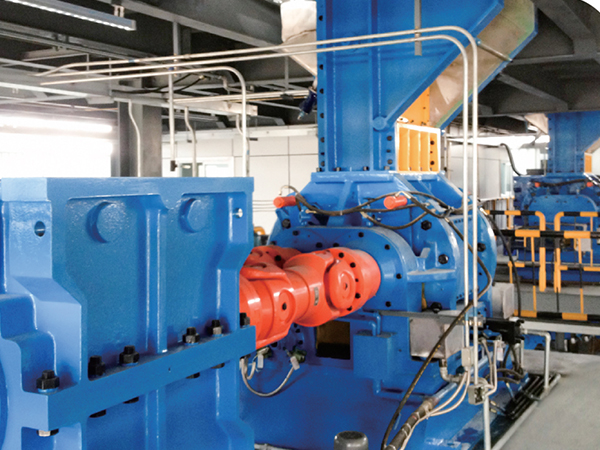

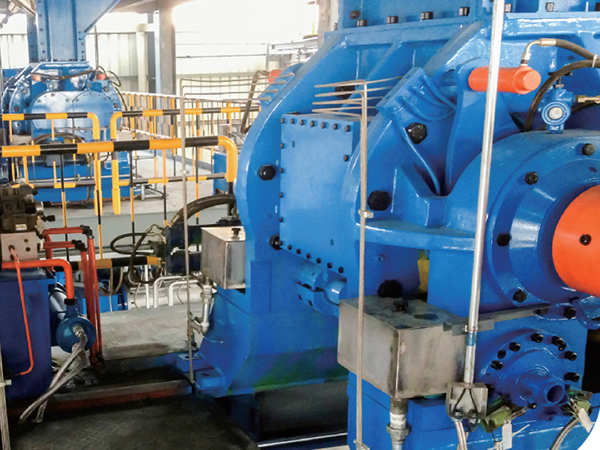

It is mainly used for plastisc’s mixing, plasticizing and final refining.
|
型號 Model |
SM-50 | SM-75 | SM-110 | SM-120 | SM-140 | SM-160 | SM-190 | |
|---|---|---|---|---|---|---|---|---|
|
密煉室總?cè)莘e(L) Total volume of mixing chamber |
50 | 75 | 110 | 120 | 140 | 160 | 190 | |
|
密煉室工作容積(L) Working volume of mixing chamber |
35 | 50 | 80 | 90 | 105 | 120 | 140 | |
|
后轉(zhuǎn)子轉(zhuǎn)速(r/min) Speed of rear rotor |
40 | 40 | 40 | 40 | 40 | 40 | 40 | |
|
轉(zhuǎn)子速比 Rotor speed ratio |
1:1.167 | 1:1.185 | 1:1.156 | 1:1.156 | 1:1.156 | 1:1.143 | 1:1.143 | |
|
壓縮空氣壓力(mpa) Compressed air pressure |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
|
主電機(jī)功率(kw) Main motor power |
75 | 160 | 220 | 280 | 315 | 400 | 630 | |
|
外形尺寸(mm) Overall dimension |
長(L) | 5095 | 5600 | 5690 | 6525 | 6525 | 6760 | 7000 |
| 寬(W) | 1950 | 2300 | 2520 | 2350 | 2800 | 2690 | 3330 | |
| 高(H) | 3180 | 4600 | 4670 | 4490 | 5280 | 5280 | 6200 | |
|
重量(t) Weight |
11 | 16.8 | 24 | 26 | 33 | 38 | 46 | |
