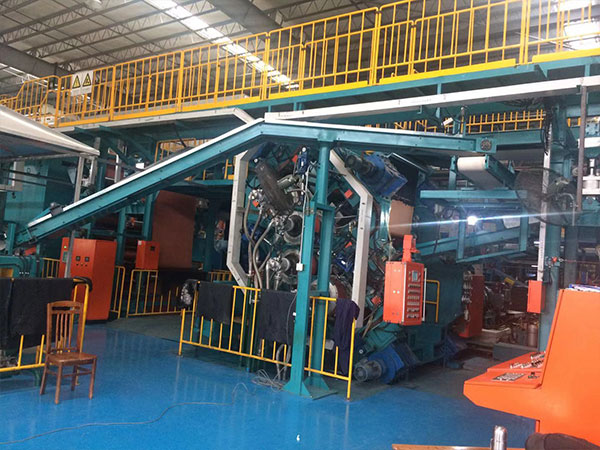

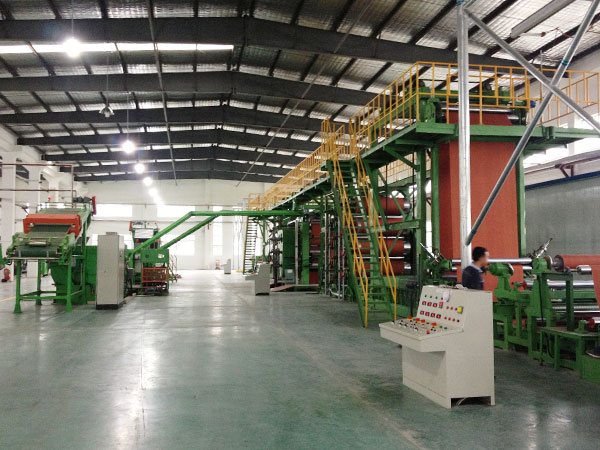

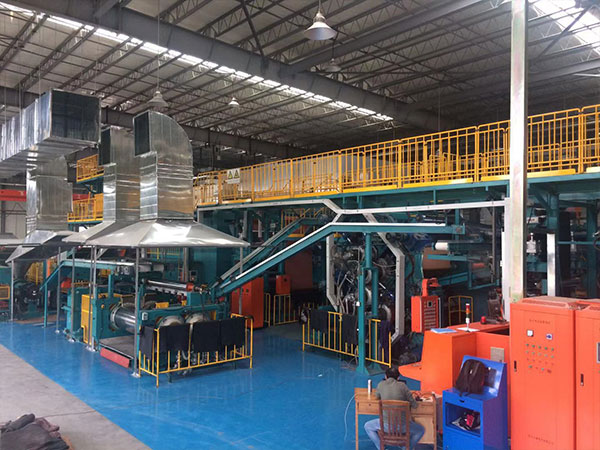

TYRE FIBER CORD CALENDERING LINE WITH TENSION

Application & Features

It is mainly used for once continuous coating or rubbing of tyre fiber cord .

Product parameters

型號
Model 		XY-4F1550 XY-4F610*1730 XY-4S510*1450 XY-4S610*1730 XY-4S660*1850
輥筒直徑(mm)
Roll diameter 		560 610 510 610 660
輥筒工作長度(mm)
Roll working length 		1550 1730 1450 1730 1850
驅(qū)動輥線速度(m/min)
Drive roll liner speed 		3.5～35 5.4～54 3～30 6～60 7～70
制品寬度(mm)
Max.product width 		1300 1500 1200 1500 1600
制品小厚度(mm)
Min.product thickness 		0.2 0.2 0.2 0.2 0.2
電機功率(kw)
Motor power 		185 220 45X2
55X2 		90X2
110X2 		110X2
132X2
