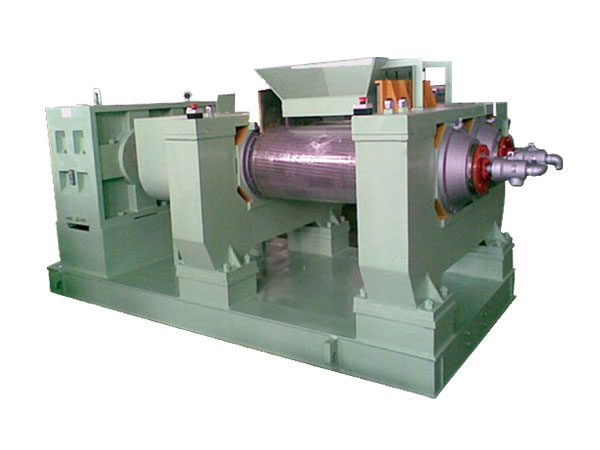

It’s applicable for the refining of recycled tire rubber.
1. The roll is made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. Both the front roll and the back roll are plain. The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
2. The back roll can used drilled roll for better cooling and front and back rolls are supported with roller bearings.
3. The machine is equipped with an overload protection device to prevent the major components from damaged due to overloading.
4. The machine is equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It’s safe and reliable.
5. The machine is equipped with scraper and wind up unit, which can take the reclaiming rubber off from the winding-up roller.
|
型號(hào) Model |
XKJ400 | XKJ450 | XKJ480 | XKF480 | |
|
輥筒直徑(mm) Roll diameter |
400 | 450 | 610/480 | 610/480 | |
|
輥筒工作長(zhǎng)度(mm) Roll working length |
500 | 600 | 800 | 800 | |
|
前輥線速度(m/min) Front roll linear speed |
24.5 | 25 | 25.6 | 25.6 | |
|
輥筒速比 Roll friction ratio |
1:1.7 | 1:1.7 | 1:1.815 | 1:1.55 | |
|
投料量(kg/h) Feed capacity |
200 | 230 | 250 | 250 | |
|
電機(jī)功率(kw) Motor power |
45 | 55 | 75 | 75 | |
|
外形尺寸(mm) Overall dimension |
長(zhǎng)(L) | 3520 | 4600 | 5610 | 5610 |
| 寬(W) | 1710 | 1920 | 2450 | 2450 | |
| 高(H) | 1850 | 1870 | 2000 | 2000 | |
|
重量(t) Weight |
7.7 | 11 | 19 | 19 | |
